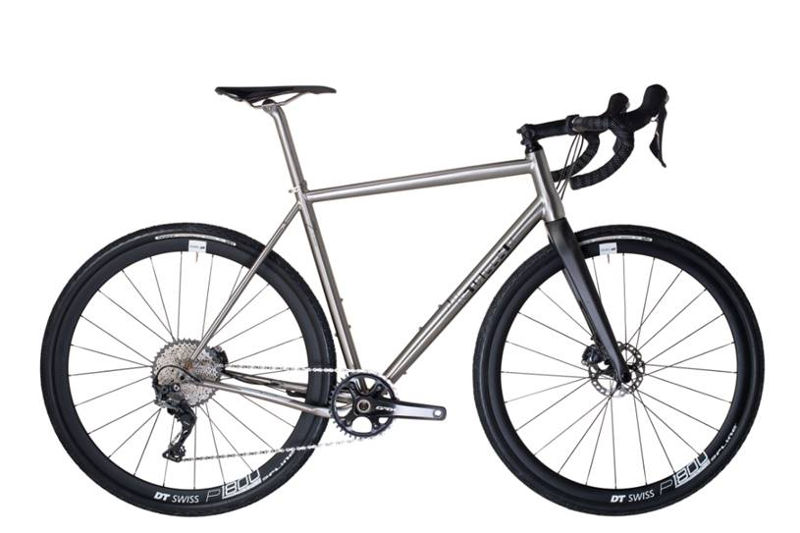

2017 J.Guillem Atalaya-Gravel geometry
Full frame geometry for the 2017 J.Guillem Atalaya-Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 528 | 381 | 74 | 70 | 110 | 535 | 500 | 797 | 70 | 600 | 420 | 1010 |
| 54 | 550 | 386 | 73.5 | 71 | 130 | 550 | 520 | 819 | 70 | 603 | 420 | 1013 |
| 56 | 592 | 394 | 73.5 | 72 | 170 | 570 | 540 | 851 | 70 | 615 | 420 | 1025 |
| 58 | 602 | 411 | 73.5 | 72 | 180 | 590 | 560 | 866 | 70 | 635 | 420 | 1045 |
All measurements in millimetres unless marked (°) for angles.
