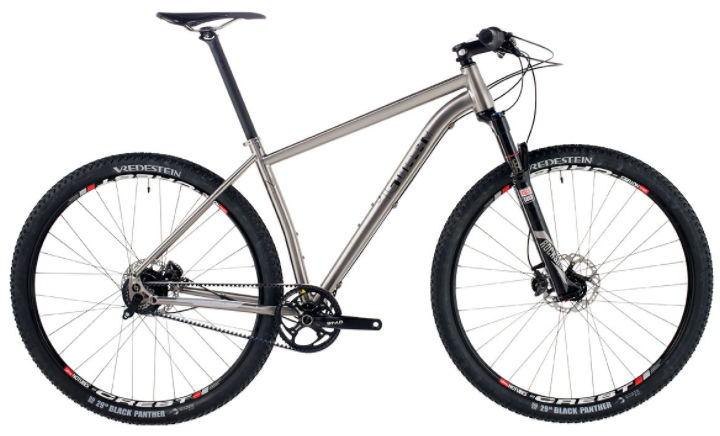

2017 J.Guillem Atalaya geometry
Full frame geometry for the 2017 J.Guillem Atalaya, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 593 | 394 | 73.5 | 71 | 95 | 565 | 394 | 767 | 62 | 629 | 437 | 1058 |
| 17 | 603 | 412 | 73.5 | 71 | 105 | 590 | 432 | 789 | 62 | 649 | 437 | 1079 |
| 18.5 | 612 | 428 | 73 | 71 | 115 | 615 | 470 | 812 | 62 | 669 | 437 | 1098 |
| 20 | 621 | 450 | 73 | 71 | 125 | 640 | 508 | 833 | 62 | 694 | 437 | 1124 |
All measurements in millimetres unless marked (°) for angles.
