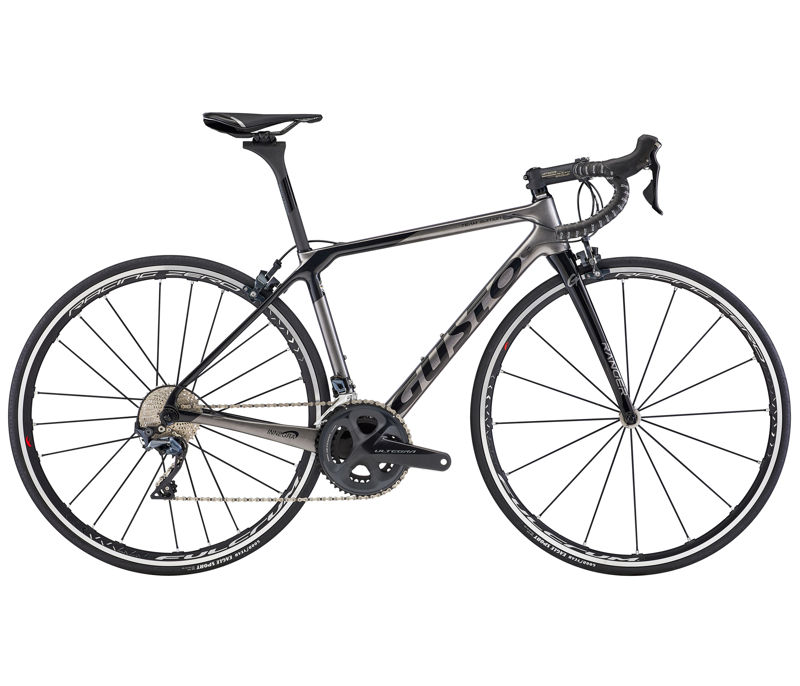

2023 Gusto Ranger geometry
Full frame geometry for the 2023 Gusto Ranger, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 502 | 361 | 73 | 72.5 | 92 | 514 | 395 | 68 | 547 | 410 | 937 | 43 |
| S | 518 | 367 | 73 | 73 | 105 | 525 | 395 | 68 | 554 | 410 | 943 | 43 |
| M | 525 | 373 | 73 | 73 | 115 | 534 | 433 | 68 | 563 | 410 | 953 | 43 |
| ML | 541 | 380 | 73 | 73 | 130 | 545 | 433 | 68 | 574 | 410 | 964 | 43 |
| L | 560 | 394 | 73 | 73 | 150 | 565 | 500 | 68 | 593 | 410 | 984 | 43 |
| XL | 604 | 415 | 73.5 | 73.5 | 194 | 594 | 560 | 68 | 622 | 410 | 1023 | 43 |
All measurements in millimetres unless marked (°) for angles.
