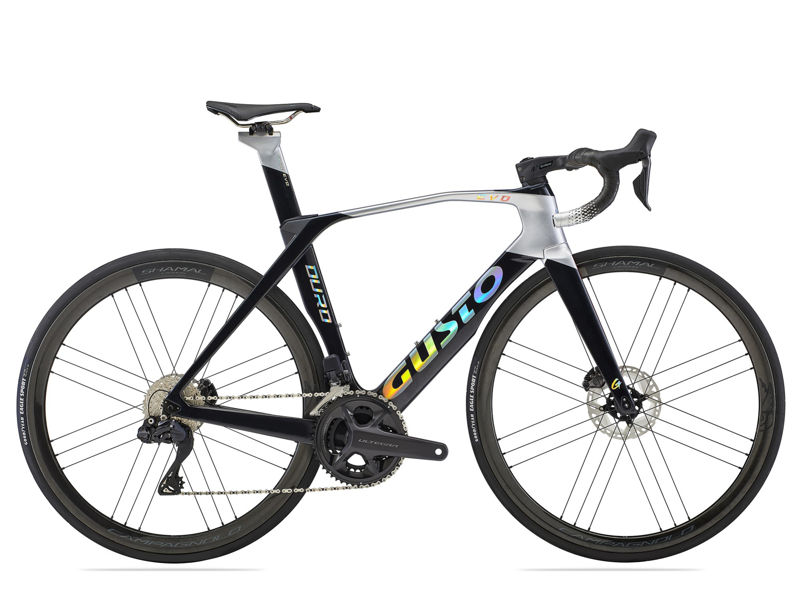

2023 Gusto Duro Eve DB Pro Legend geometry
Full frame geometry for the 2023 Gusto Duro Eve DB Pro Legend , size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 511 | 364 | 74 | 72 | 100 | 513 | 440 | 70 | 559 | 405 | 953 | 45 |
| S | 523 | 371 | 73.5 | 72.5 | 111 | 528 | 470 | 70 | 565 | 405 | 960 | 45 |
| M | 543 | 376 | 73 | 73 | 130 | 542 | 490 | 70 | 572 | 405 | 967 | 45 |
| ML | 555 | 383 | 73 | 73 | 143 | 552 | 510 | 70 | 582 | 405 | 977 | 45 |
| L | 570 | 391 | 73 | 73 | 158 | 566 | 520 | 70 | 596 | 405 | 991 | 45 |
| XL | 590 | 400 | 73 | 73.5 | 178 | 580 | 540 | 70 | 605 | 405 | 1000 | 45 |
All measurements in millimetres unless marked (°) for angles.
