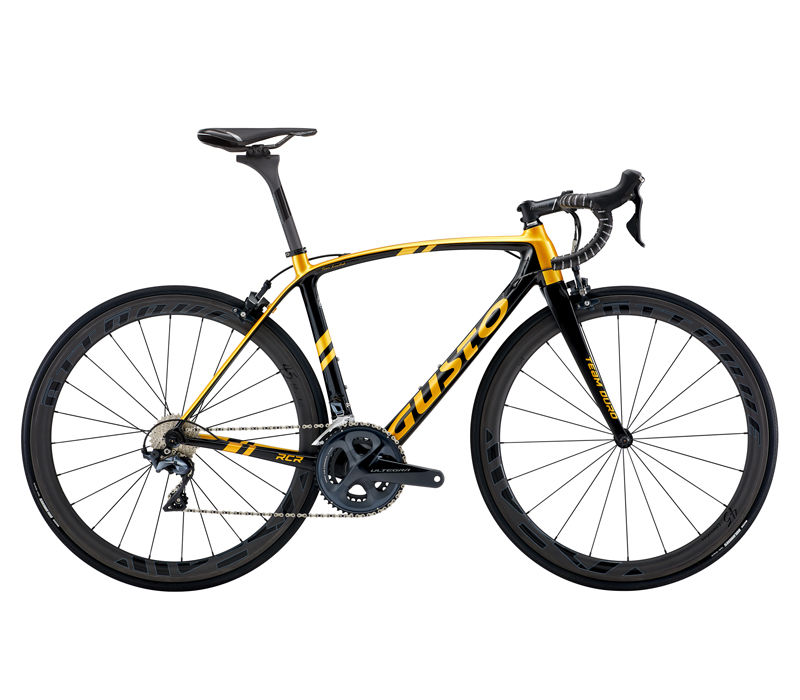

2022 Gusto Duro geometry
Full frame geometry for the 2022 Gusto Duro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 496 | 362 | 75 | 71 | 98 | 495 | 465 | 68 | 561 | 409 | 960 | 45 |
| S | 508 | 370 | 75 | 71 | 110 | 506 | 470 | 68 | 573 | 409 | 970 | 45 |
| SM | 519 | 373 | 74 | 71.5 | 118 | 520 | 495 | 68 | 573 | 409 | 972 | 45 |
| M | 530 | 382 | 74 | 72 | 130 | 534 | 500 | 68 | 583 | 409 | 980 | 45 |
| L | 551 | 389 | 73.5 | 72.5 | 150 | 553 | 530 | 68 | 593 | 409 | 990 | 45 |
| XL | 572 | 398 | 73.5 | 73 | 170 | 567 | 560 | 68 | 603 | 409 | 1000 | 45 |
All measurements in millimetres unless marked (°) for angles.
