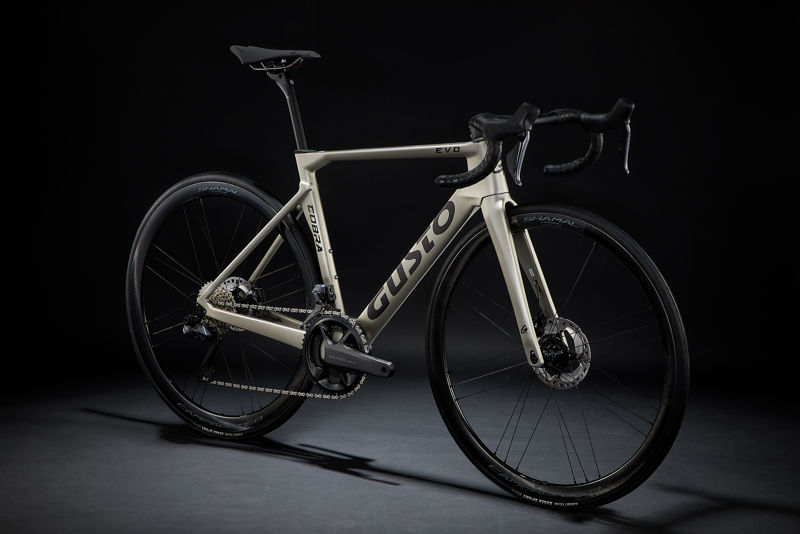

2024 Gusto Cobra Evo DB geometry
Full frame geometry for the 2024 Gusto Cobra Evo DB, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 511 | 367 | 74.5 | 72 | 100 | 508 | 440 | 736 | 68 | 562 | 408 | 960 | 45 |
| S | 523 | 373 | 73.5 | 72.5 | 111 | 528 | 470 | 755 | 68 | 567 | 408 | 966 | 45 |
| M | 540 | 377 | 73 | 73 | 120 | 540 | 490 | 772 | 68 | 570 | 408 | 968 | 45 |
| ML | 555 | 386 | 73 | 73 | 140 | 555 | 510 | 789 | 68 | 585 | 408 | 983 | 45 |
| L | 573 | 395 | 73 | 73 | 162 | 570 | 530 | 809 | 68 | 600 | 408 | 999 | 45 |
| XL | 600 | 404 | 73 | 73 | 190 | 587 | 560 | 837 | 68 | 617 | 408 | 1016 | 45 |
All measurements in millimetres unless marked (°) for angles.
