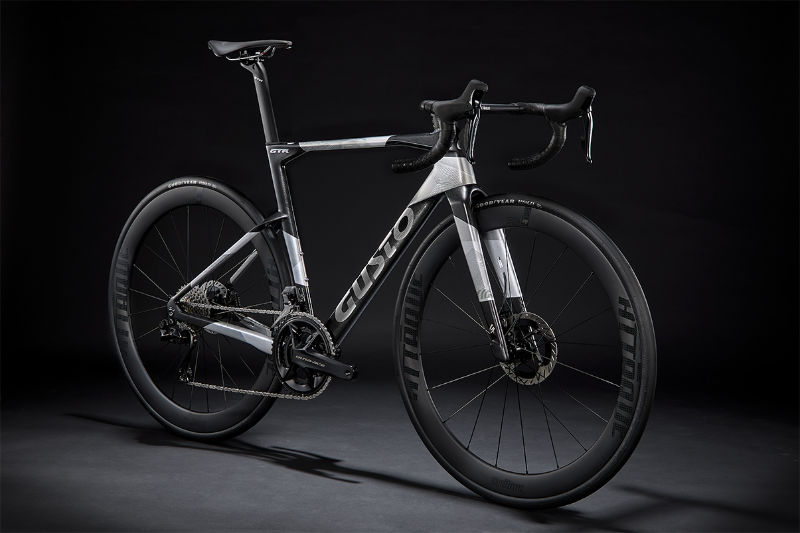

2026 Gusto GTR geometry
Full frame geometry for the 2026 Gusto GTR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 512 | 364 | 75 | 70.5 | 94 | 501 | 460 | 794 | 73 | 572 | 410 | 971 | 45 | 75.5 |
| S | 530 | 375 | 74.5 | 71.5 | 110 | 522 | 490 | 775 | 73 | 580 | 410 | 979 | 45 | 66 |
| M | 550 | 390 | 74 | 72 | 130 | 538 | 520 | 800 | 72 | 597 | 412 | 998 | 45 | 65 |
| ML | 569 | 391 | 73.5 | 72.5 | 145 | 559 | 540 | 817 | 72 | 598 | 412 | 1000 | 45 | 62.5 |
| L | 581 | 400 | 73 | 73 | 160 | 578 | 560 | 836 | 71 | 607 | 414 | 1011 | 45 | 59.3 |
| XL | 600 | 410 | 73 | 73 | 178 | 593 | 580 | 854 | 71 | 618 | 414 | 1022 | 45 | 58.1 |
All measurements in millimetres unless marked (°) for angles.
