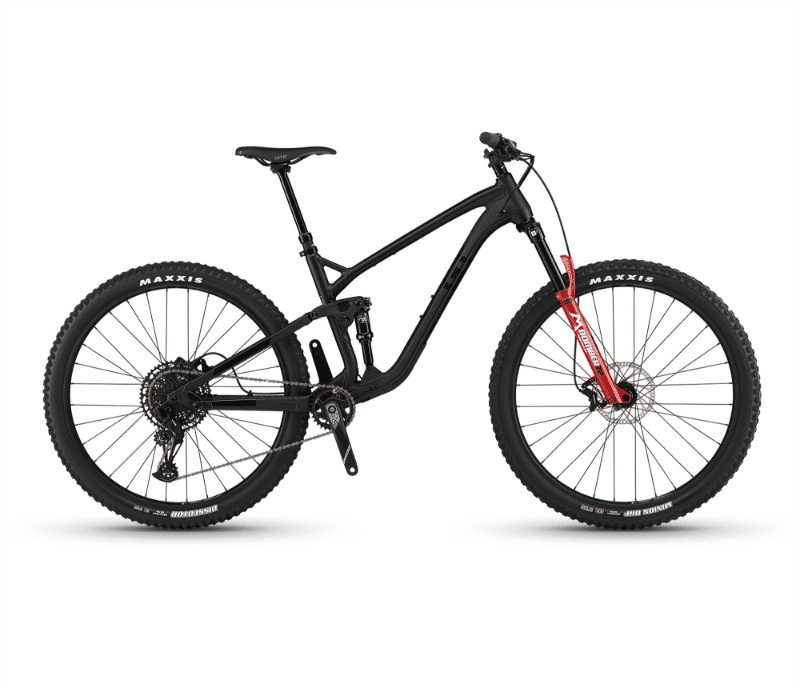

2026 GT Sensor geometry
Full frame geometry for the 2026 GT Sensor, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 615 | 425 | 77.5 | 65.5 | 110 | 551 | 395 | 740 | 35 | 738 | 440 | 1176 | 44 | 125 |
| MD | 624 | 450 | 77.5 | 65.5 | 120 | 579 | 420 | 740 | 35 | 767 | 440 | 1205 | 44 | 125 |
| LG | 633 | 475 | 77.5 | 65.5 | 130 | 607 | 445 | 745 | 35 | 797 | 440 | 1234 | 44 | 125 |
| XL | 642 | 510 | 77.5 | 65.5 | 140 | 646 | 460 | 755 | 35 | 836 | 440 | 1273 | 44 | 125 |
All measurements in millimetres unless marked (°) for angles.
