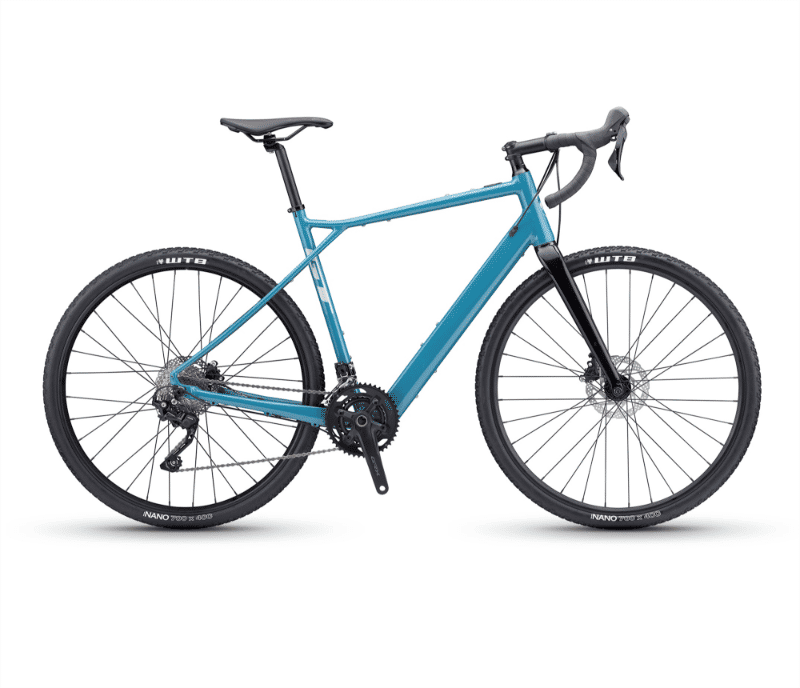

2026 GT eGrade geometry
Full frame geometry for the 2026 GT eGrade, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 550 | 385 | 73 | 70 | 124 | 545 | 458 | 741 | 75 | 617 | 455 | 1062 | 55 |
| MD | 577 | 405 | 73 | 71 | 150 | 562 | 505 | 782 | 75 | 621 | 455 | 1065 | 55 |
| LG | 603 | 425 | 73 | 71 | 183 | 581 | 553 | 822 | 75 | 641 | 455 | 1086 | 55 |
| XL | 630 | 445 | 73 | 71 | 214 | 601 | 600 | 862 | 75 | 662 | 455 | 1107 | 55 |
All measurements in millimetres unless marked (°) for angles.
