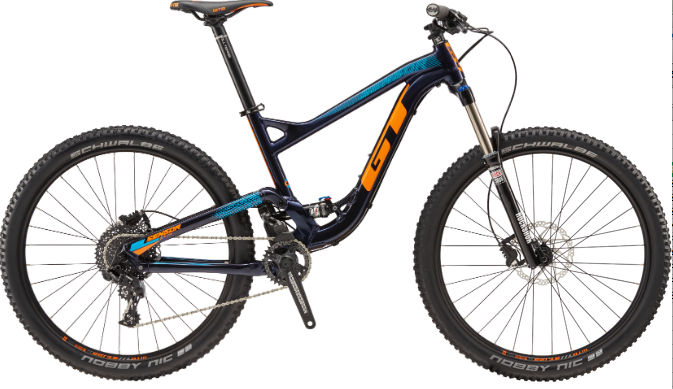

2017 GT Sensor geometry
Full frame geometry for the 2017 GT Sensor, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 574 | 398 | 73.5 | 68.5 | 92 | 572 | 406 | 737 | 18 | 666 | 440 | 1105 | 42 |
| M | 594 | 415 | 73.5 | 68.5 | 108 | 601 | 426 | 724 | 18 | 696 | 440 | 1135 | 42 |
| XS | 596 | 378 | 73.5 | 68 | 92 | 556 | 390 | 731 | 18 | 655 | 440 | 1094 | 42 |
| L | 609 | 439 | 73.5 | 68.5 | 124 | 629 | 476 | 751 | 18 | 726 | 440 | 1165 | 42 |
| XL | 624 | 463 | 73.5 | 68.5 | 140 | 658 | 527 | 793 | 18 | 756 | 440 | 1195 | 42 |
All measurements in millimetres unless marked (°) for angles.
