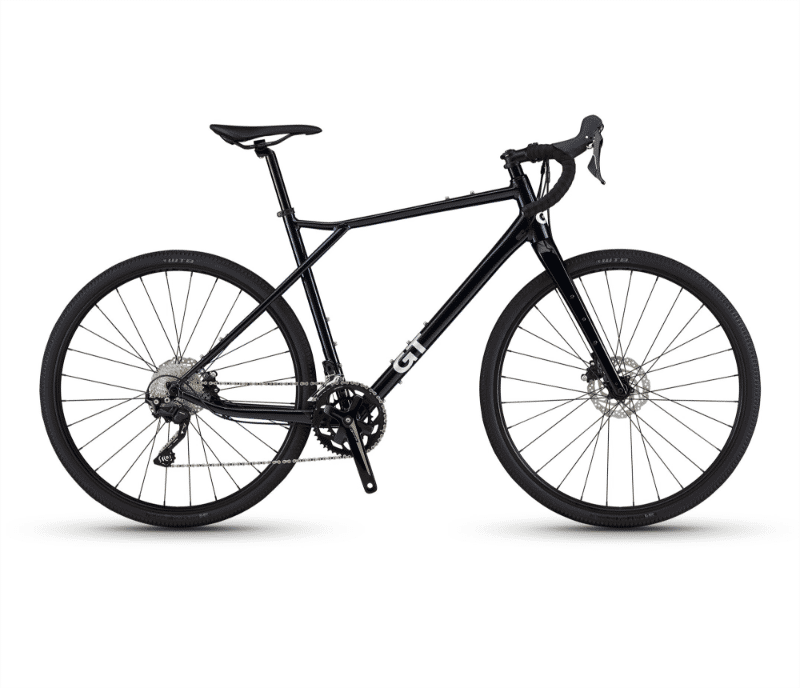

2026 GT Grade geometry
Full frame geometry for the 2026 GT Grade, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 365 | 73 | 69 | 94 | 529 | 400 | 692 | 75 | 605 | 440 | 1034 | 55 | 79 |
| SM | 550 | 385 | 73 | 70 | 106 | 553 | 450 | 727 | 75 | 621 | 440 | 1050 | 55 | 72 |
| MD | 577 | 405 | 73 | 70 | 134 | 581 | 500 | 765 | 75 | 651 | 440 | 1080 | 55 | 72 |
| LG | 603 | 425 | 73 | 70 | 162 | 609 | 550 | 805 | 75 | 680 | 440 | 1109 | 55 | 72 |
| XL | 630 | 445 | 73 | 70 | 191 | 638 | 600 | 837 | 75 | 709 | 440 | 1139 | 55 | 72 |
All measurements in millimetres unless marked (°) for angles.
