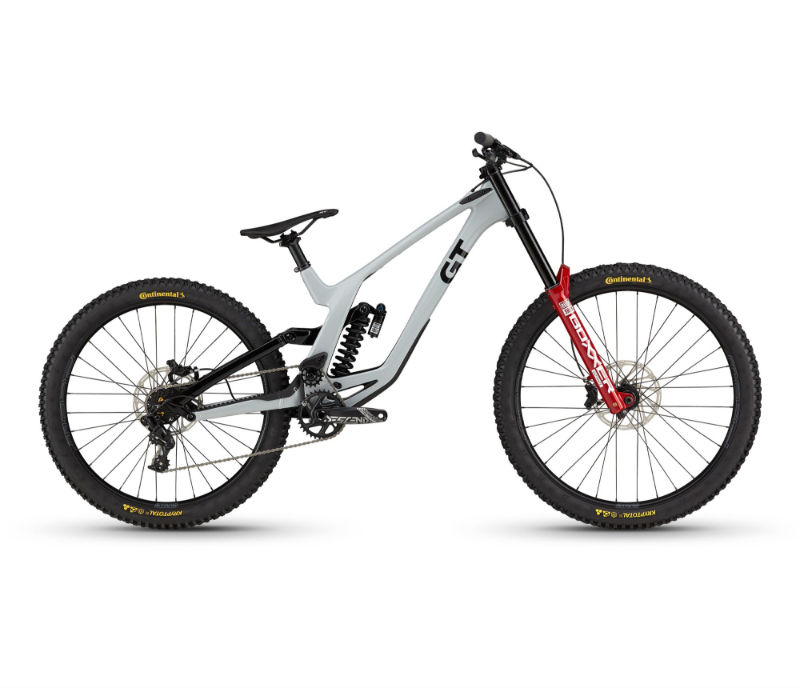

2026 GT Fury Carbon geometry
Full frame geometry for the 2026 GT Fury Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 638 | 450 | 75 | 63.5 | 110 | 621 | 410 | 720 | 821 | 1260 | 52 | 133 |
| LG | 647 | 480 | 75 | 63.5 | 120 | 653 | 420 | 730 | 856 | 1295 | 52 | 133 |
| XL | 656 | 510 | 75 | 63.5 | 130 | 686 | 430 | 730 | 890 | 1329 | 52 | 133 |
All measurements in millimetres unless marked (°) for angles.
