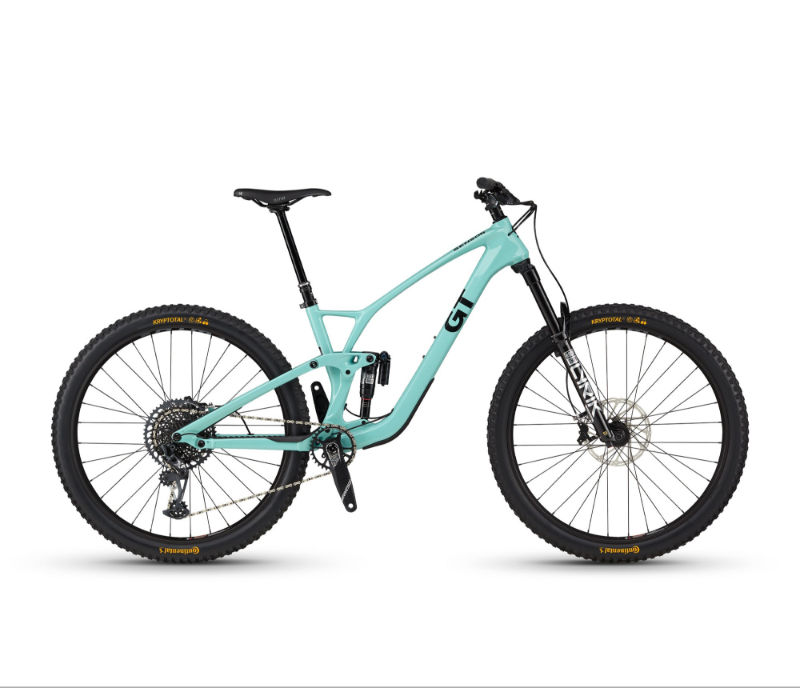

2026 GT Sensor Carbon geometry
Full frame geometry for the 2026 GT Sensor Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 624 | 430 | 77 | 65 | 110 | 574 | 380 | 715 | 36 | 754 | 440 | 1191 | 44 | 128 |
| MD | 633 | 455 | 77 | 65 | 120 | 601 | 400 | 725 | 36 | 783 | 440 | 1221 | 44 | 128 |
| LG | 642 | 480 | 77 | 65 | 130 | 628 | 420 | 735 | 36 | 812 | 440 | 1250 | 44 | 128 |
| XL | 651 | 515 | 77 | 65 | 140 | 666 | 460 | 745 | 36 | 851 | 440 | 1289 | 44 | 128 |
All measurements in millimetres unless marked (°) for angles.
