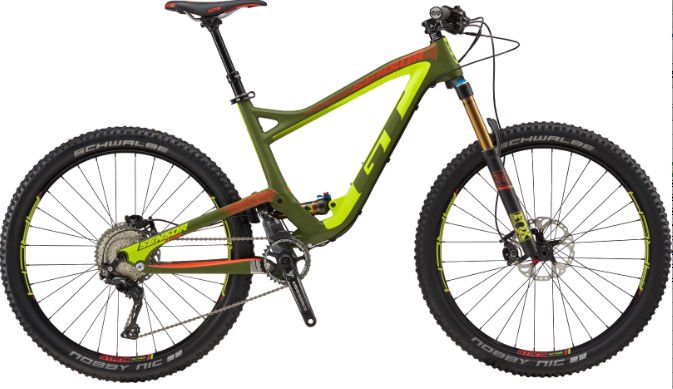

2017 GT Sensor Carbon geometry
Full frame geometry for the 2017 GT Sensor Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 575 | 389 | 73 | 67 | 98 | 574 | 449 | 742 | 14 | 682 | 440 | — | 42 |
| M | 590 | 422 | 73 | 68 | 109 | 602 | 474 | 762 | 14 | 700 | 440 | 1140 | 42 |
| L | 605 | 446 | 73 | 68 | 125 | 631 | 500 | 782 | 14 | 730 | 440 | 1170 | 42 |
| XL | 620 | 470 | 73 | 68 | 141 | 659 | 526 | 794 | 14 | 760 | 440 | 1200 | 42 |
All measurements in millimetres unless marked (°) for angles.
