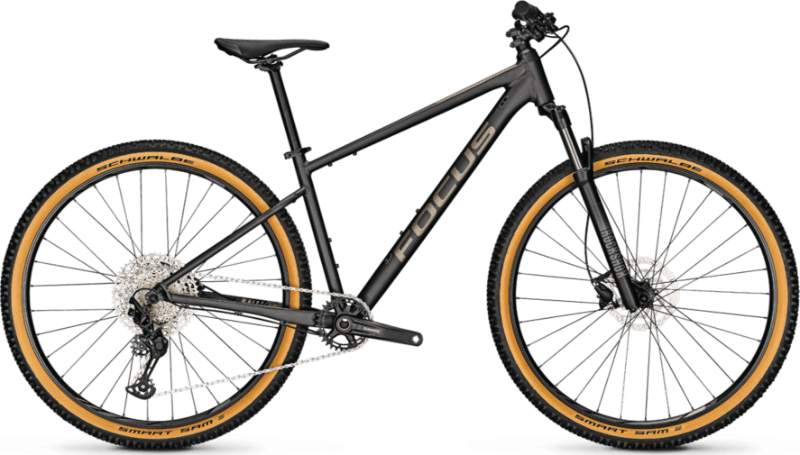

2026 Focus Whistler geometry
Full frame geometry for the 2026 Focus Whistler, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 400 | 74 | 68 | 120 | 574 | 360 | 48 | 400 | 1104 | 42 |
| XS | 605 | 375 | 74 | 68 | 120 | 549 | 340 | 48 | 440 | 1079 | 42 |
| M | 630 | 425 | 74 | 68 | 120 | 606 | 420 | 60 | 450 | 1155 | 51 |
| L | 649 | 450 | 74 | 68 | 140 | 636 | 460 | 60 | 450 | 1187 | 51 |
| XL | 667 | 475 | 74 | 68 | 160 | 666 | 500 | 60 | 450 | 1220 | 51 |
All measurements in millimetres unless marked (°) for angles.
