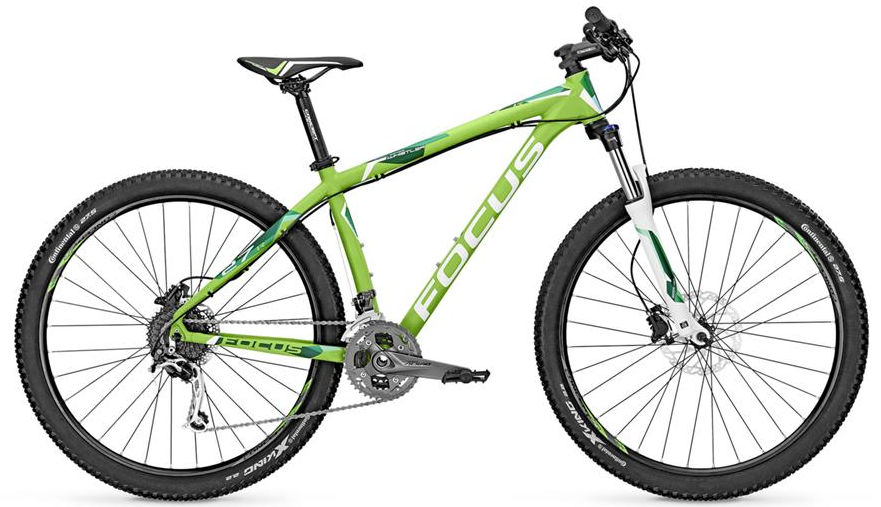

2015 Focus Whistler 27r geometry
Full frame geometry for the 2015 Focus Whistler 27r, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 628 | 408 | 73 | 70 | 105 | 600 | 480 | 69 | 661 | 447 | 1114 | 44 | 75 |
| S | 628 | 384 | 73 | 70 | 105 | 576 | 420 | 69 | 637 | 447 | 1092 | 44 | 75 |
| L | 642 | 426 | 73 | 70 | 120 | 622 | 540 | 69 | 684 | 447 | 1136 | 44 | 75 |
All measurements in millimetres unless marked (°) for angles.
