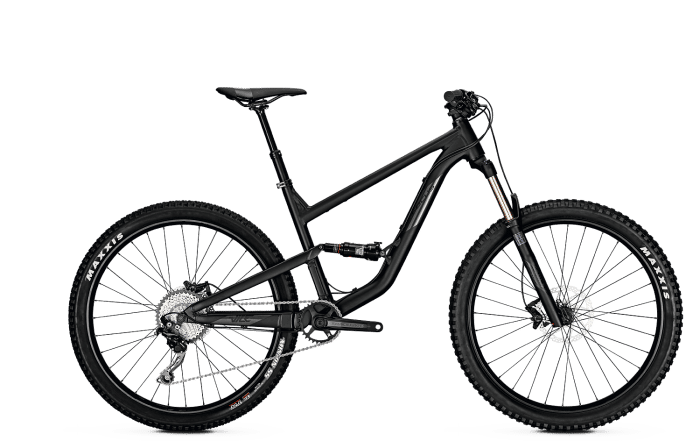

2018 Focus Vice geometry
Full frame geometry for the 2018 Focus Vice, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 420 | 75 | 67 | 108 | 578 | 400 | 25 | 420 | 1124 | 42 |
| M | 598 | 440 | 75 | 67 | 118 | 600 | 440 | 25 | 420 | 1148 | 42 |
| L | 625 | 460 | 75 | 67 | 148 | 648 | 480 | 25 | 420 | 1200 | 42 |
All measurements in millimetres unless marked (°) for angles.
