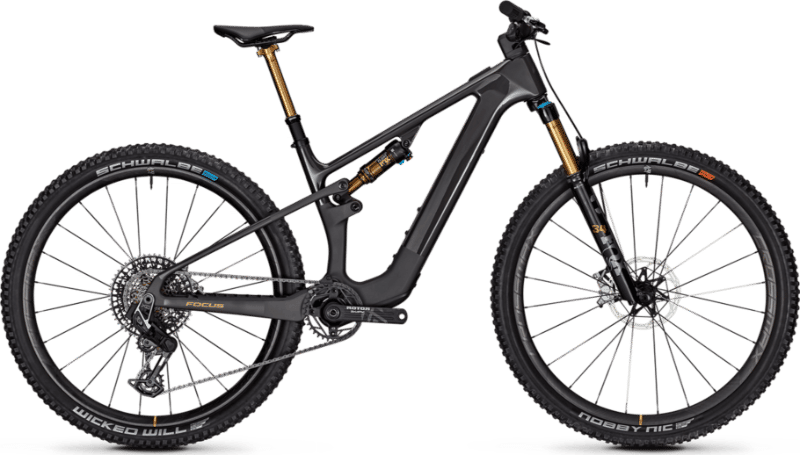

2024 Focus VAM2 SL geometry
Full frame geometry for the 2024 Focus VAM2 SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 602 | 450 | 75.5 | 66.5 | 100 | 606 | 420 | 790 | 35 | 440 | 1185 | 44 |
| S | 602 | 420 | 75.5 | 66.5 | 100 | 576 | 390 | 790 | 35 | 440 | 1166 | 44 |
| L | 620 | 475 | 75.5 | 66.5 | 120 | 635 | 440 | 790 | 35 | 440 | 1218 | 44 |
| XL | 639 | 505 | 75.5 | 66.5 | 140 | 670 | 460 | 790 | 35 | 440 | 1256 | 44 |
All measurements in millimetres unless marked (°) for angles.
