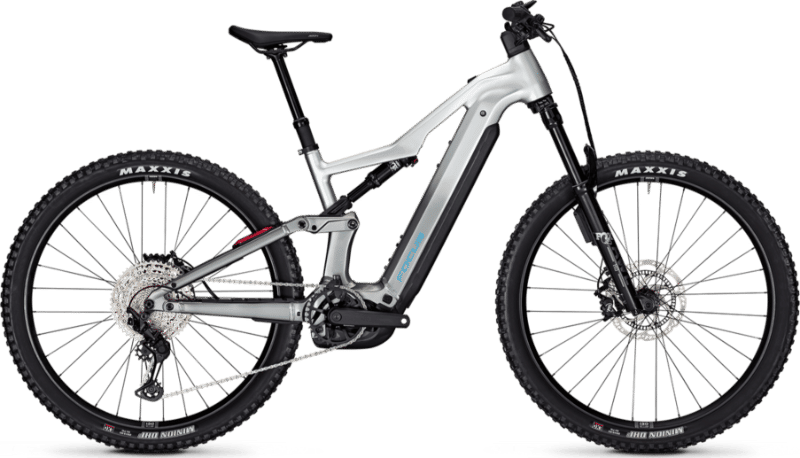

2025 Focus THRON2 geometry
Full frame geometry for the 2025 Focus THRON2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 637 | 415 | 75.5 | 66 | 110 | 580 | 390 | 785 | 30 | 455 | 1187 | 44 |
| M | 646 | 445 | 75.5 | 66 | 120 | 612 | 420 | 785 | 30 | 455 | 1221 | 44 |
| L | 655 | 470 | 75.5 | 66 | 130 | 649 | 440 | 785 | 30 | 455 | 1250 | 44 |
| XL | 664 | 500 | 75.5 | 66 | 140 | 672 | 460 | 785 | 30 | 455 | 1285 | 44 |
All measurements in millimetres unless marked (°) for angles.
