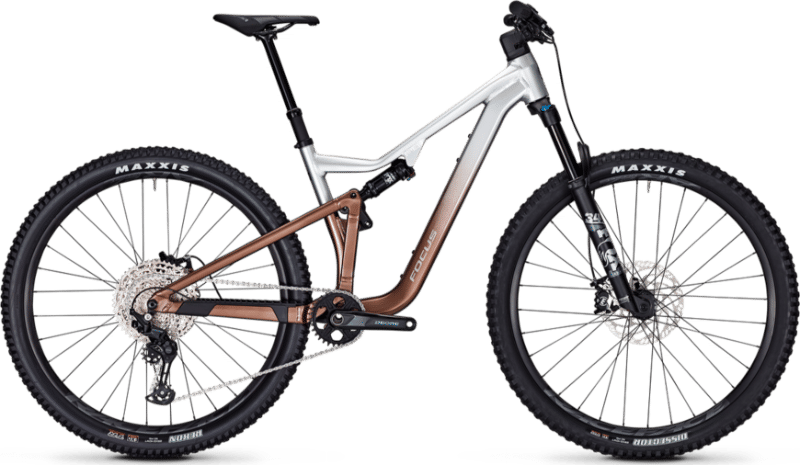

2024 Focus Thron geometry
Full frame geometry for the 2024 Focus Thron, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 410 | 75 | 66.5 | 100 | 572 | 390 | 755 | 35 | 435 | 1139 | 46 |
| M | 615 | 440 | 75 | 66.5 | 110 | 605 | 420 | 755 | 35 | 435 | 1173 | 46 |
| L | 633 | 470 | 75 | 66.5 | 130 | 640 | 450 | 755 | 35 | 435 | 1211 | 46 |
| XL | 651 | 500 | 75 | 66.5 | 160 | 674 | 530 | 755 | 35 | 435 | 1253 | 46 |
All measurements in millimetres unless marked (°) for angles.
