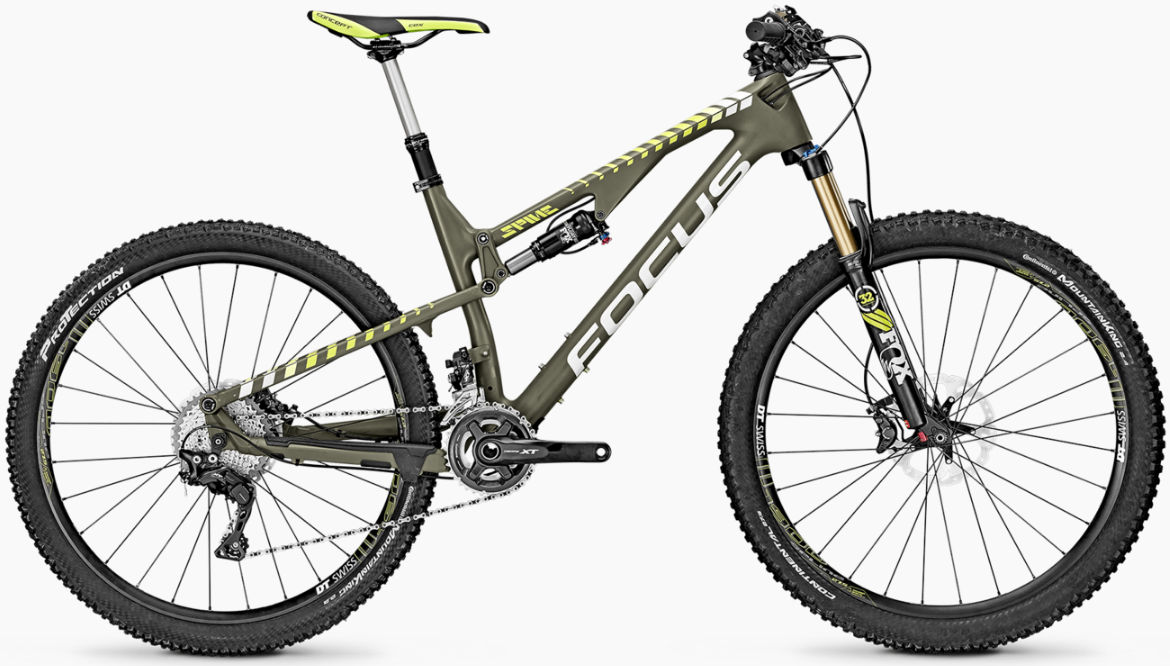

2016 Focus Spine C geometry
Full frame geometry for the 2016 Focus Spine C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 570 | 426 | 75 | 68 | 100 | 571 | 420 | 18 | 695 | 428 | 1119 | 42 | 90 |
| M | 589 | 444 | 75 | 68 | 120 | 602 | 440 | 18 | 720 | 428 | 1140 | 42 | 90 |
| L | 607 | 462 | 75 | 68 | 140 | 615 | 480 | 18 | 746 | 428 | 1166 | 42 | 90 |
| XL | 626 | 479 | 75 | 68 | 160 | 635 | 520 | 18 | 770 | 428 | 1190 | 42 | 90 |
All measurements in millimetres unless marked (°) for angles.
