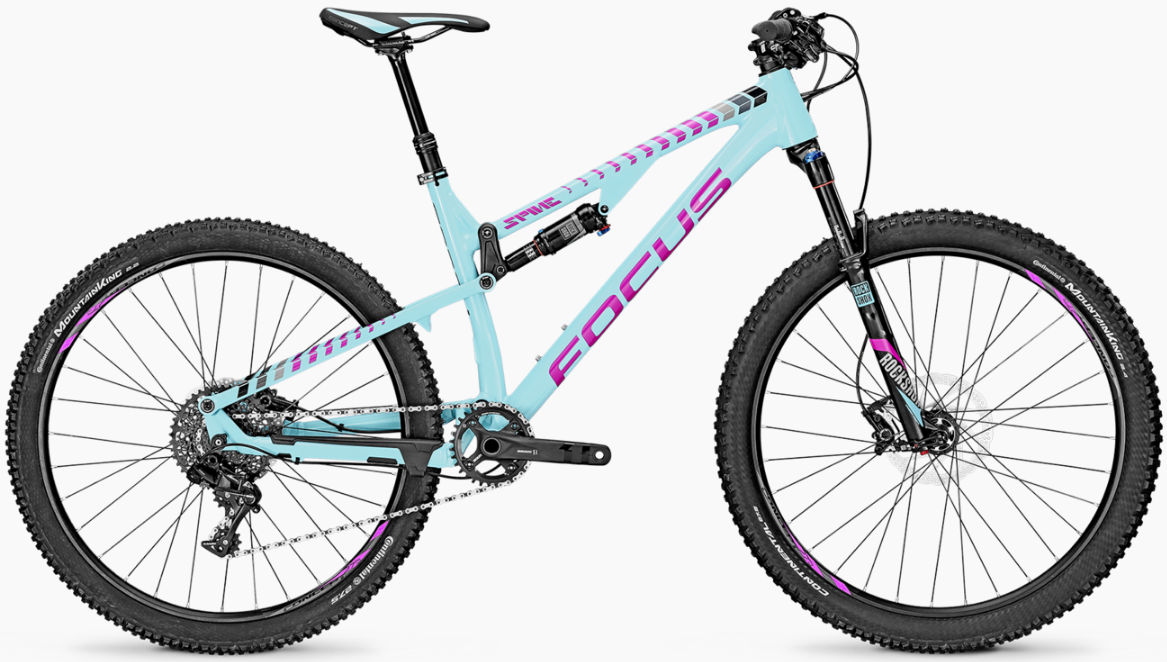

2016 Focus Spine Al Donna geometry
Full frame geometry for the 2016 Focus Spine Al Donna, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 571 | 425 | 75 | 68 | 100 | 578 | 420 | 18 | 696 | 428 | 1122 | 42 | 90 |
| M | 589 | 443 | 75 | 68 | 120 | 602 | 440 | 18 | 721 | 428 | 1147 | 42 | 90 |
| L | 608 | 462 | 75 | 68 | 140 | 625 | 480 | 18 | 747 | 428 | 1173 | 42 | 90 |
All measurements in millimetres unless marked (°) for angles.
