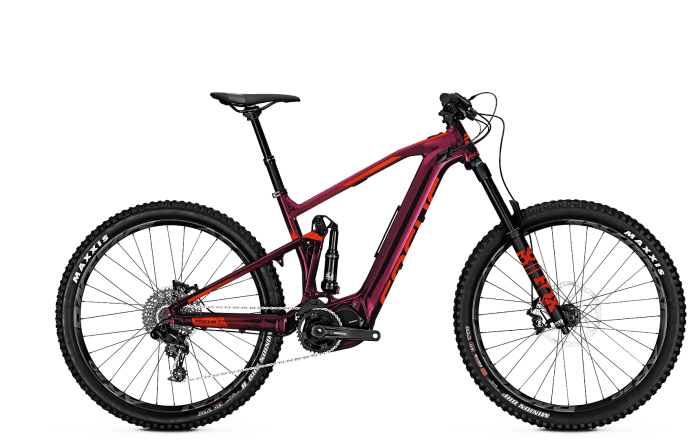

2018 Focus Sam2 geometry
Full frame geometry for the 2018 Focus Sam2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 607 | 440 | 75 | 65 | 118 | 604 | 440 | 12 | 455 | 1217 | 42 |
| S | 607 | 425 | 75 | 65 | 118 | 585 | 420 | 12 | 455 | 1196 | 42 |
| L | 625 | 455 | 75 | 65 | 138 | 624 | 480 | 12 | 455 | 1240 | 42 |
All measurements in millimetres unless marked (°) for angles.
