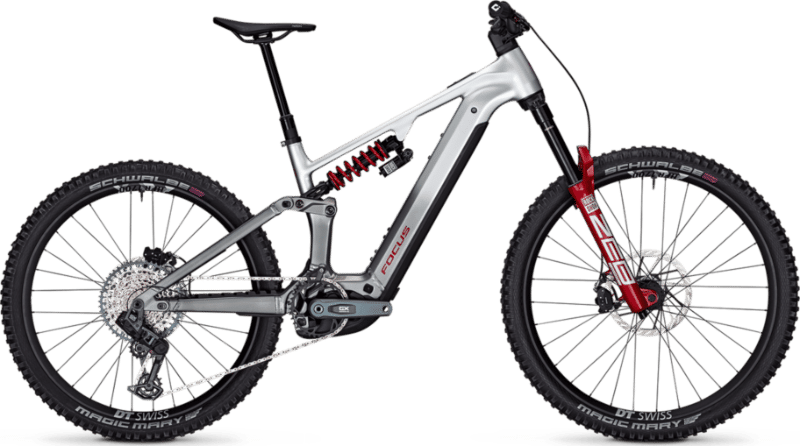

2026 Focus SAM² geometry
Full frame geometry for the 2026 Focus SAM², size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 630 | 435 | 77.5 | 63.5 | 110 | 572 | 390 | 820 | 20 | 448 | 1235 | 44 |
| M | 639 | 465 | 77.5 | 63.5 | 120 | 604 | 420 | 820 | 20 | 448 | 1270 | 44 |
| L | 648 | 490 | 77.5 | 63.5 | 130 | 633 | 440 | 820 | 20 | 448 | 1299 | 44 |
| XL | 666 | 520 | 77.5 | 63.5 | 150 | 667 | 460 | 820 | 20 | 448 | 1338 | 44 |
All measurements in millimetres unless marked (°) for angles.
