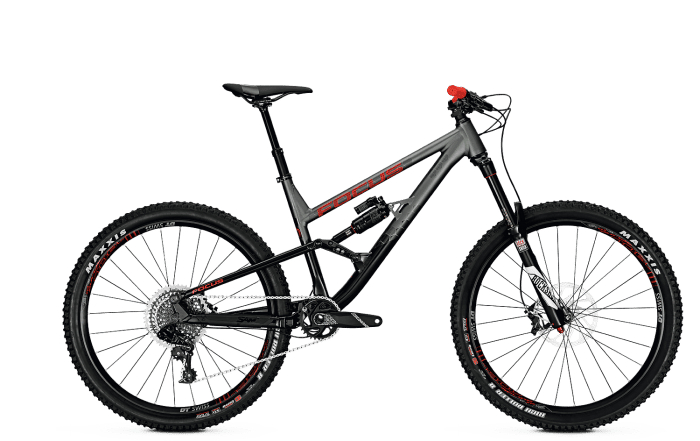

2018 Focus Sam Lite geometry
Full frame geometry for the 2018 Focus Sam Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 590 | 422 | 75 | 65.8 | 100 | 580 | 420 | 7 | 732 | 438 | 1158 | 42 | 104 |
| M | 594 | 436 | 75 | 65.8 | 105 | 595 | 450 | 7 | 749 | 438 | 1184 | 42 | 104 |
| L | 608 | 452 | 75 | 65.8 | 120 | 615 | 480 | 7 | 771 | 438 | 1206 | 42 | 104 |
| XL | 622 | 468 | 75 | 65.8 | 135 | 635 | 510 | 7 | 793 | 438 | 1228 | 42 | 104 |
All measurements in millimetres unless marked (°) for angles.
