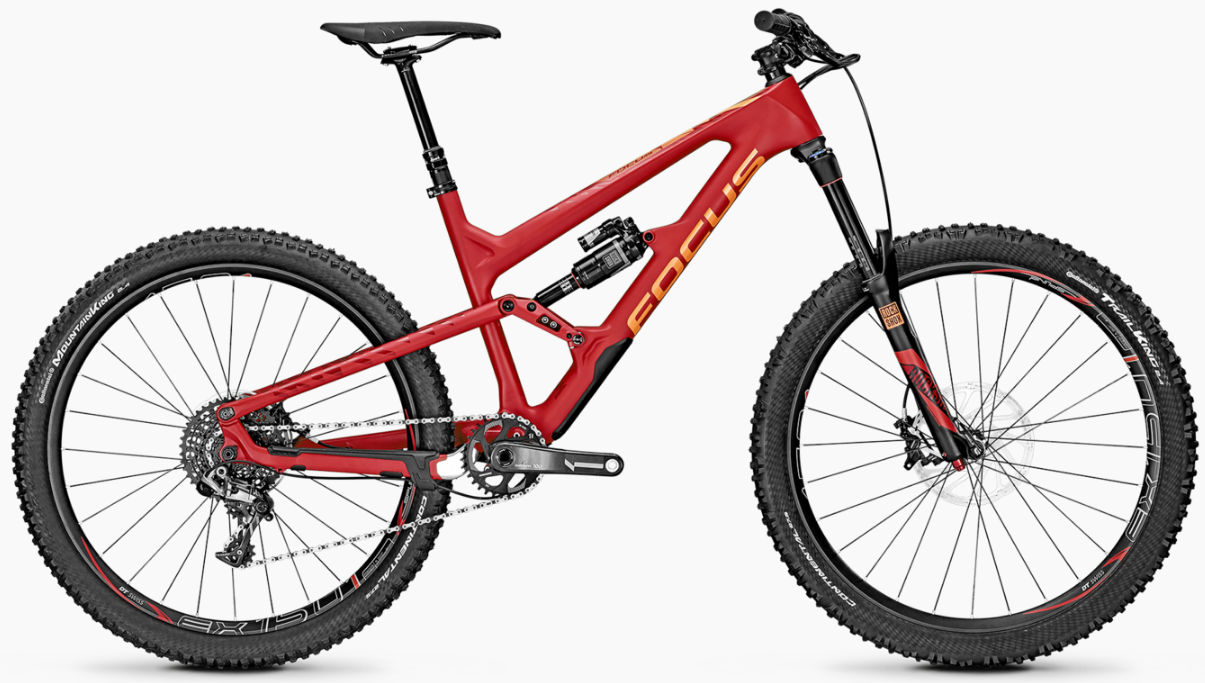

2016 Focus Sam C geometry
Full frame geometry for the 2016 Focus Sam C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 585 | 422 | 75 | 65.8 | 100 | 575 | 400 | 10 | 732 | 430 | 1160 | 42 | 104 |
| M | 590 | 435 | 75 | 65.8 | 105 | 590 | 440 | 10 | 748 | 430 | 1175 | 42 | 104 |
| L | 603 | 452 | 75 | 65.8 | 120 | 610 | 480 | 10 | 771 | 430 | 1198 | 42 | 104 |
| XL | 617 | 468 | 75 | 65.8 | 135 | 630 | 520 | 10 | 793 | 430 | 1221 | 42 | 104 |
All measurements in millimetres unless marked (°) for angles.
