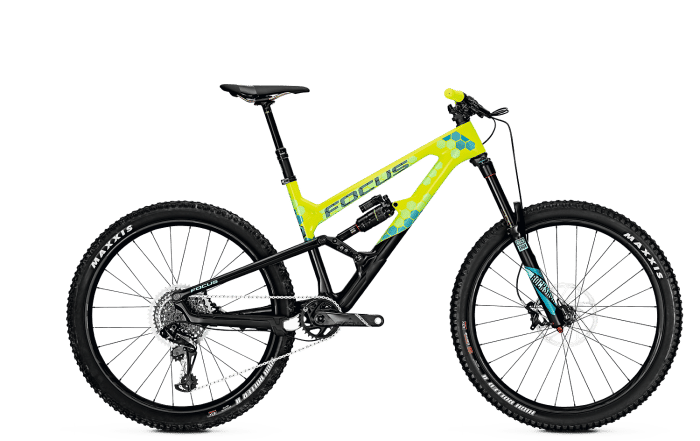

2018 Focus Sam C SL geometry
Full frame geometry for the 2018 Focus Sam C SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 420 | 74.7 | 65.5 | 100 | 576 | 400 | 8 | 430 | 1163 | 42 |
| M | 591 | 433 | 74.7 | 65.5 | 105 | 591 | 440 | 8 | 430 | 1178 | 42 |
| L | 605 | 450 | 74.7 | 65.5 | 120 | 611 | 480 | 8 | 430 | 1201 | 42 |
| XL | 619 | 466 | 74.7 | 65.5 | 135 | 631 | 520 | 8 | 430 | 1224 | 42 |
All measurements in millimetres unless marked (°) for angles.
