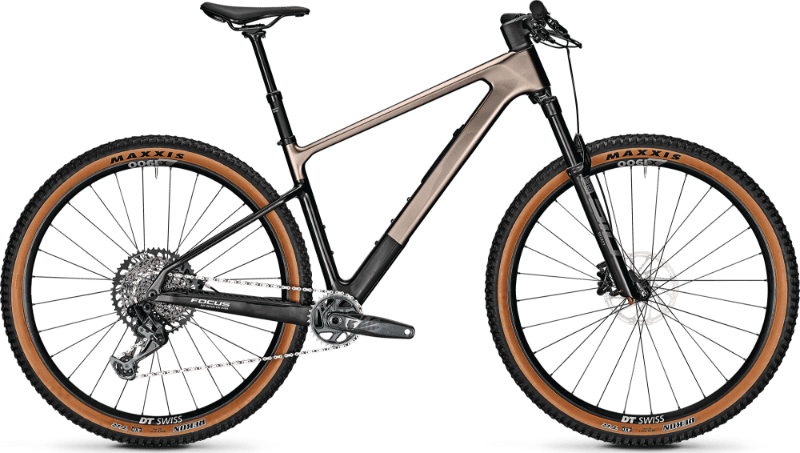

2026 Focus RAVEN geometry
Full frame geometry for the 2026 Focus RAVEN, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 632 | 440 | 74 | 66.5 | 100 | 621 | 440 | 820 | 65 | 430 | 1159 | 44 |
| S | 632 | 415 | 74 | 66.5 | 100 | 596 | 400 | 804 | 65 | 430 | 1134 | 44 |
| L | 650 | 460 | 74 | 66.5 | 120 | 646 | 480 | 846 | 65 | 430 | 1187 | 44 |
| XL | 669 | 485 | 74 | 66.5 | 140 | 676 | 520 | 871 | 65 | 430 | 1220 | 44 |
All measurements in millimetres unless marked (°) for angles.
