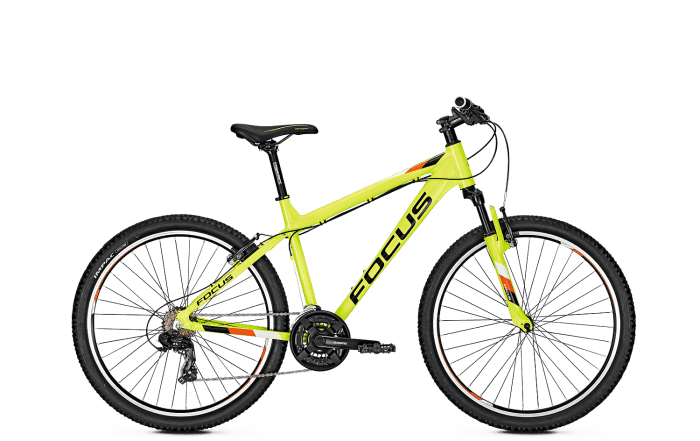

2018 Focus Raven Rookie 26 geometry
Full frame geometry for the 2018 Focus Raven Rookie 26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| OS | 580 | 373 | 74 | 69.5 | 110 | 545 | 360 | 38 | 430 | 1047 | 40 |
All measurements in millimetres unless marked (°) for angles.
