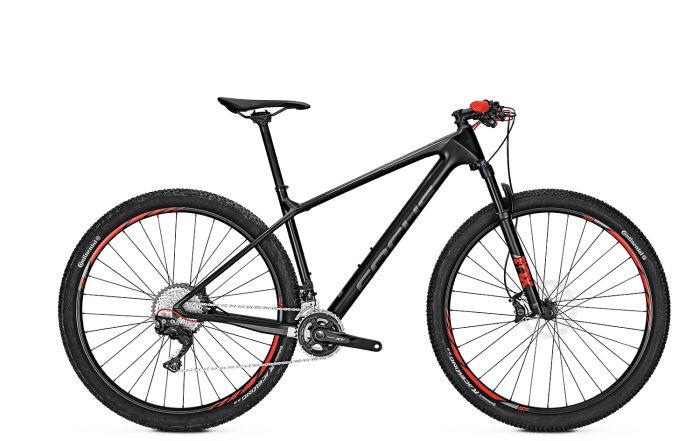

2018 Focus Raven EVO geometry
Full frame geometry for the 2018 Focus Raven EVO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 580 | 405 | 74.5 | 69.5 | 100 | 566 | 380 | 47 | 425 | 1074 | 44 |
| S | 620 | 420 | 74.5 | 69.8 | 104 | 592 | 420 | 68 | 435 | 1100 | 44 |
| M | 623 | 435 | 74.5 | 69.8 | 107 | 608 | 460 | 68 | 435 | 1116 | 44 |
| L | 644 | 450 | 74.5 | 69.8 | 130 | 629 | 500 | 68 | 435 | 1139 | 44 |
| XL | 663 | 465 | 74.5 | 69.8 | 150 | 649 | 540 | 68 | 435 | 1160 | 44 |
All measurements in millimetres unless marked (°) for angles.
