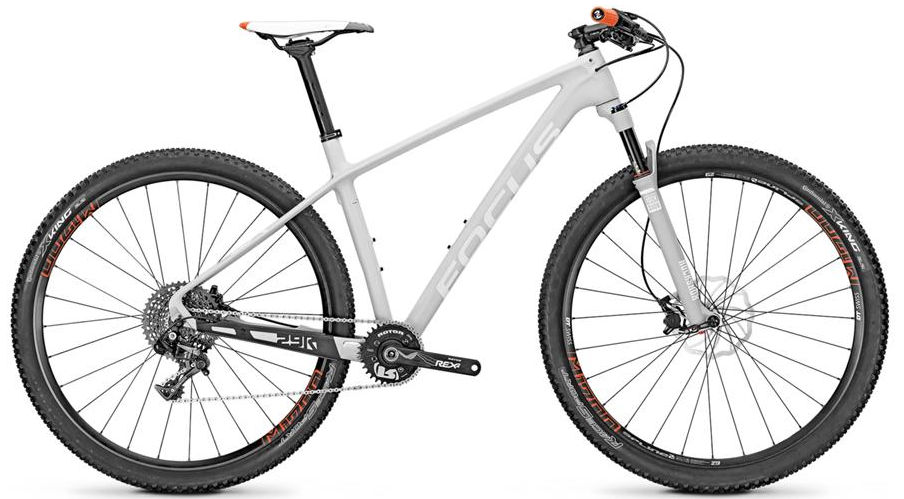

2015 Focus Raven 29r geometry
Full frame geometry for the 2015 Focus Raven 29r, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 395 | 73.6 | 69.4 | 108 | 577 | 420 | 68 | 655 | 447 | 1093 | 44 | 88 |
| M | 626 | 419 | 73.7 | 70 | 111 | 601 | 480 | 69 | 674 | 447 | 1110 | 44 | 83 |
| L | 641 | 436 | 73.6 | 69.8 | 122 | 624 | 540 | 68 | 697 | 447 | 1134 | 44 | 85 |
All measurements in millimetres unless marked (°) for angles.
