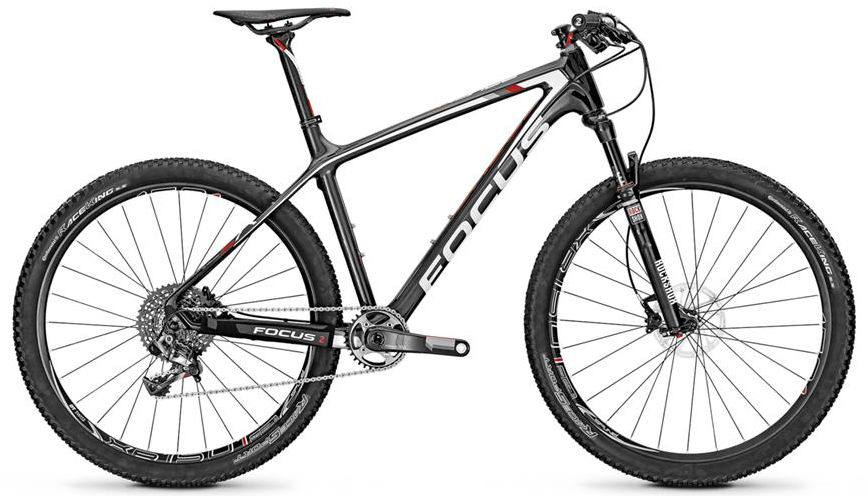

2015 Focus Raven 27r geometry
Full frame geometry for the 2015 Focus Raven 27r, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 579 | 383 | 72.2 | 69.7 | 105 | 569 | 400 | 28 | 629 | 425 | 1051 | 38 | 83 |
| S | 590 | 390 | 72.1 | 69.6 | 117 | 584 | 440 | 28 | 641 | 425 | 1067 | 38 | 84 |
| M | 604 | 395 | 71.6 | 69.7 | 132 | 600 | 480 | 28 | 651 | 425 | 1077 | 38 | 83 |
| L | 611 | 409 | 71.7 | 69.2 | 142 | 615 | 520 | 28 | 673 | 425 | 1099 | 38 | 86 |
| XL | 621 | 415 | 71.2 | 69.2 | 152 | 630 | 560 | 28 | 683 | 425 | 1108 | 38 | 86 |
All measurements in millimetres unless marked (°) for angles.
