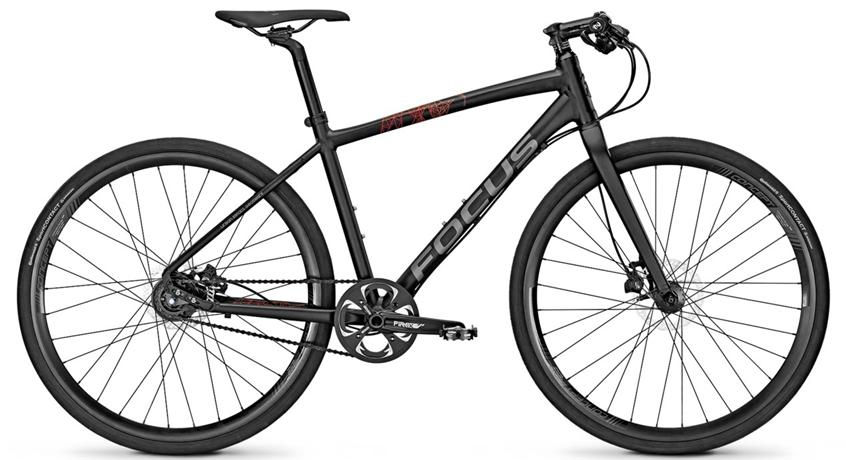

2015 Focus Planet geometry
Full frame geometry for the 2015 Focus Planet, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 560 | 395 | 74.5 | 70 | 140 | 550 | 420 | 45 | 630 | 440 | 1062 | 45 | 80 |
| M | 564 | 408 | 73.5 | 71 | 140 | 575 | 460 | 45 | 634 | 440 | 1072 | 45 | 73 |
| L | 583 | 422 | 73 | 71 | 160 | 600 | 500 | 45 | 654 | 440 | 1087 | 45 | 73 |
| XL | 601 | 435 | 72.5 | 71 | 180 | 625 | 540 | 45 | 674 | 440 | 1107 | 45 | 73 |
All measurements in millimetres unless marked (°) for angles.
