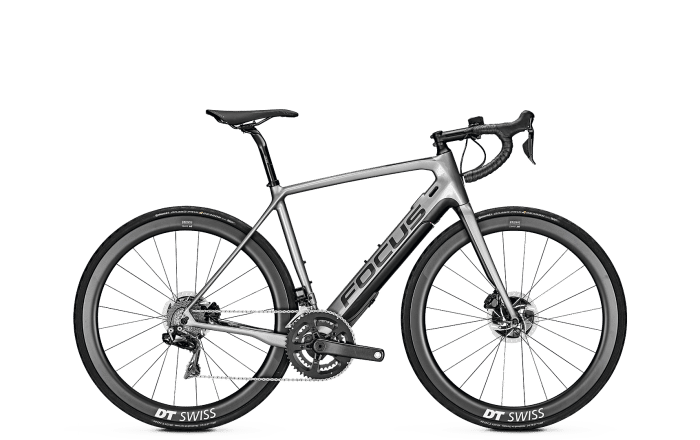

2018 Focus Paralane2 geometry
Full frame geometry for the 2018 Focus Paralane2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 564 | 370 | 74.5 | 71.5 | 150 | 524 | 480 | 75 | 415 | 990 | 46 |
| M | 580 | 375 | 73.5 | 72 | 165 | 547 | 516 | 75 | 415 | 996 | 46 |
| L | 605 | 390 | 73.5 | 72.5 | 190 | 568 | 540 | 75 | 415 | 1014 | 46 |
| XL | 630 | 405 | 73.5 | 72.5 | 215 | 590 | 570 | 75 | 415 | 1036 | 46 |
All measurements in millimetres unless marked (°) for angles.
