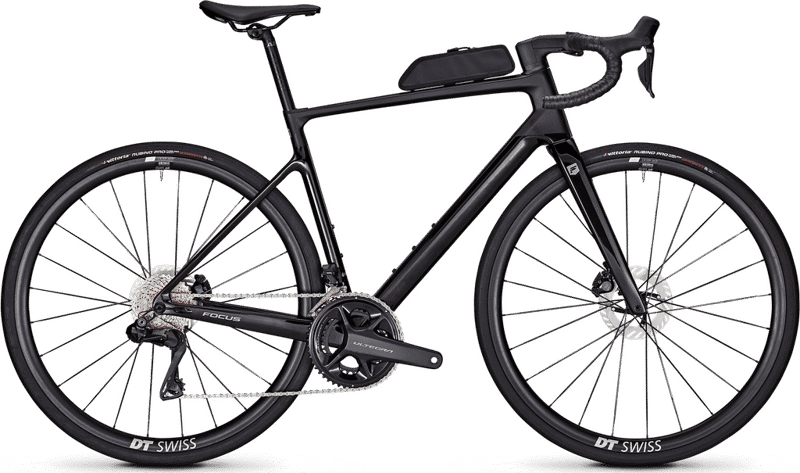

2024 Focus Paralane geometry
Full frame geometry for the 2024 Focus Paralane, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 368 | 75 | 70.5 | 124 | 511 | 455 | 75 | 415 | 989 | 50 |
| S | 556 | 376 | 74.5 | 71 | 144 | 530 | 485 | 75 | 415 | 999 | 50 |
| M | 579 | 383 | 74 | 72 | 164 | 549 | 505 | 75 | 415 | 1004 | 50 |
| L | 603 | 389 | 73.5 | 72 | 189 | 568 | 535 | 75 | 415 | 1017 | 50 |
| XL | 633 | 403 | 73 | 72.5 | 219 | 597 | 575 | 75 | 415 | 1036 | 50 |
All measurements in millimetres unless marked (°) for angles.
