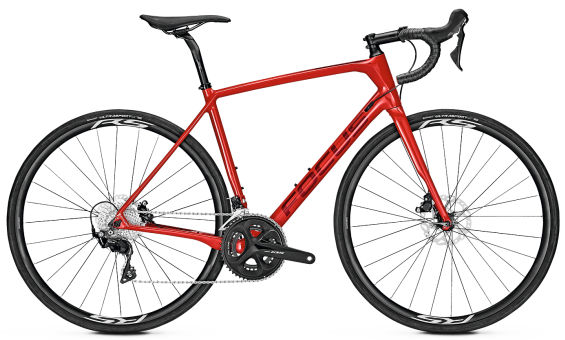

2018 Focus Paralane Carbon MKII geometry
Full frame geometry for the 2018 Focus Paralane Carbon MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 534 | 359 | 75.5 | 71 | 120 | 498 | 455 | 75 | 415 | 974 | 46 |
| S | 564 | 369 | 74.5 | 71.5 | 150 | 526 | 485 | 75 | 415 | 990 | 46 |
| M | 580 | 375 | 73.5 | 72 | 165 | 547 | 515 | 75 | 415 | 996 | 46 |
| L | 594 | 384 | 73.5 | 72 | 180 | 560 | 535 | 75 | 415 | 1010 | 46 |
| XL | 615 | 394 | 73.5 | 72.5 | 200 | 577 | 555 | 75 | 415 | 1021 | 46 |
| XXL | 630 | 404 | 73.5 | 72.5 | 215 | 591 | 595 | 75 | 415 | 1036 | 46 |
All measurements in millimetres unless marked (°) for angles.
