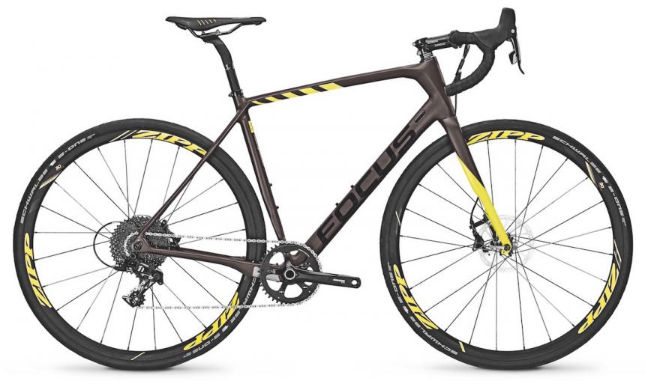

2016 Focus Paralane Carbon MKI geometry
Full frame geometry for the 2016 Focus Paralane Carbon MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 531 | 360 | 75.5 | 71 | 120 | 497 | 450 | 75 | 569 | 415 | 979 | 46 | 72 |
| 51 | 561 | 370 | 74.5 | 71.5 | 150 | 526 | 480 | 75 | 584 | 415 | 994 | 46 | 69 |
| 54 | 577 | 375 | 73.5 | 72 | 165 | 546 | 510 | 75 | 589 | 415 | 1000 | 46 | 65 |
| 56 | 592 | 385 | 73.5 | 72 | 180 | 560 | 530 | 75 | 604 | 415 | 1015 | 46 | 65 |
| 58 | 613 | 395 | 73.5 | 72.5 | 200 | 576 | 550 | 75 | 615 | 415 | 1026 | 46 | 62 |
| 61 | 627 | 405 | 73.5 | 72.5 | 215 | 591 | 590 | 75 | 630 | 415 | 1041 | 46 | 62 |
All measurements in millimetres unless marked (°) for angles.
