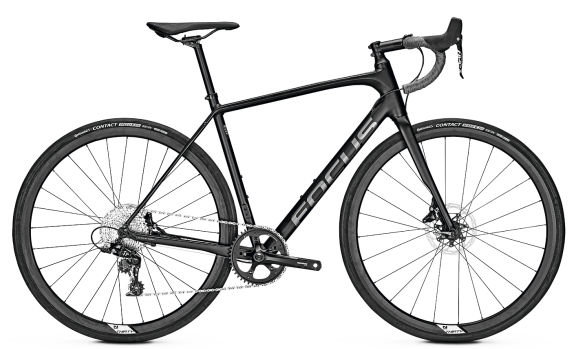

2018 Focus Paralane Al MKII geometry
Full frame geometry for the 2018 Focus Paralane Al MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 536 | 360 | 75.5 | 71 | 120 | 498 | 450 | 75 | 415 | 976 | 46 |
| S | 566 | 370 | 74.5 | 71.5 | 150 | 527 | 480 | 75 | 415 | 991 | 46 |
| M | 582 | 375 | 73.5 | 72 | 165 | 547 | 510 | 75 | 415 | 996 | 46 |
| L | 596 | 385 | 73.5 | 72 | 180 | 562 | 530 | 75 | 415 | 1011 | 46 |
| XL | 617 | 395 | 73.5 | 72.5 | 200 | 578 | 550 | 75 | 415 | 1022 | 46 |
| XXL | 632 | 405 | 73.5 | 72.5 | 215 | 592 | 590 | 75 | 415 | 1037 | 46 |
All measurements in millimetres unless marked (°) for angles.
