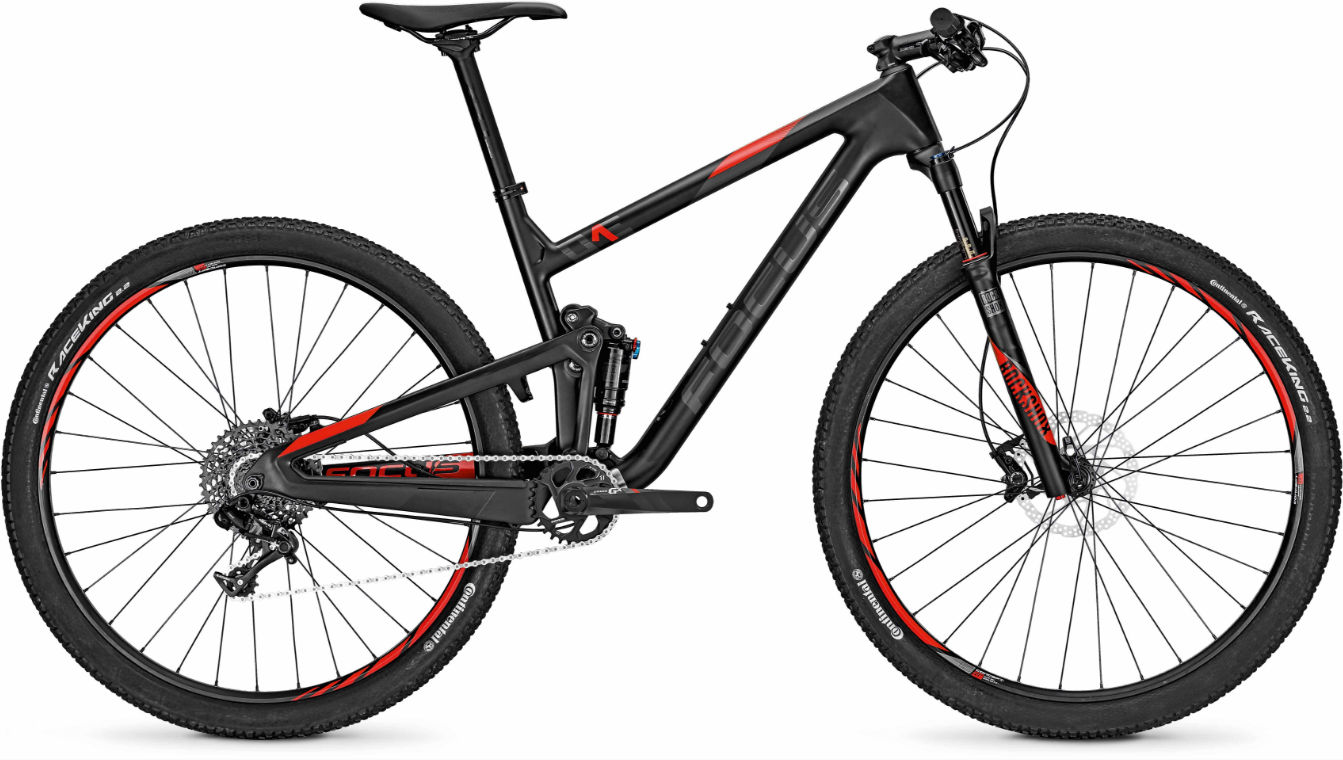

2016 Focus O1E Race geometry
Full frame geometry for the 2016 Focus O1E Race, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 419 | 74.5 | 69.2 | 100 | 584 | 420 | 38 | 448 | 1127 |
| M | 605 | 435 | 74.5 | 69.2 | 112 | 602 | 445 | 38 | 448 | 1146 |
| L | 622 | 450 | 74.5 | 69.2 | 125 | 623 | 480 | 38 | 448 | 1167 |
All measurements in millimetres unless marked (°) for angles.
