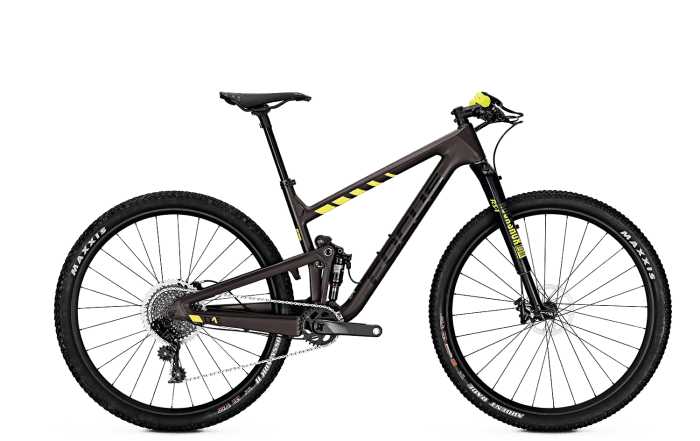

2018 Focus O1E Marathon geometry
Full frame geometry for the 2018 Focus O1E Marathon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 604 | 410 | 74.2 | 68.4 | 100 | 589 | 422 | 32 | 448 | 1139 | 51 |
| M | 611 | 426 | 74.2 | 68.4 | 112 | 605 | 446 | 32 | 448 | 1158 | 51 |
| L | 628 | 441 | 74.2 | 68.4 | 125 | 625 | 482 | 32 | 448 | 1179 | 51 |
All measurements in millimetres unless marked (°) for angles.
