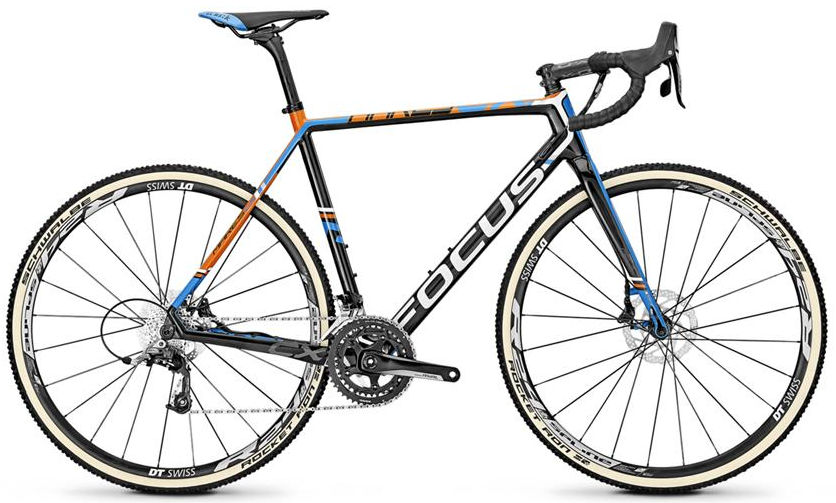

2015 Focus Mares CX Disc geometry
Full frame geometry for the 2015 Focus Mares CX Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 536 | 375 | 73.5 | 70 | 120 | 534 | 510 | 65 | 598 | 425 | 1015 | 45 | 80 |
| XS | 547 | 382 | 73.5 | 70.5 | 130 | 544 | 540 | 65 | 604 | 425 | 1020 | 45 | 76 |
| S | 559 | 390 | 73.5 | 71 | 140 | 555 | 560 | 65 | 610 | 425 | 1027 | 45 | 73 |
| M | 568 | 397 | 74.5 | 71 | 150 | 565 | 580 | 65 | 621 | 425 | 1037 | 45 | 73 |
| L | 579 | 405 | 73.5 | 71.5 | 160 | 577 | 600 | 65 | 627 | 425 | 1045 | 45 | 70 |
All measurements in millimetres unless marked (°) for angles.
