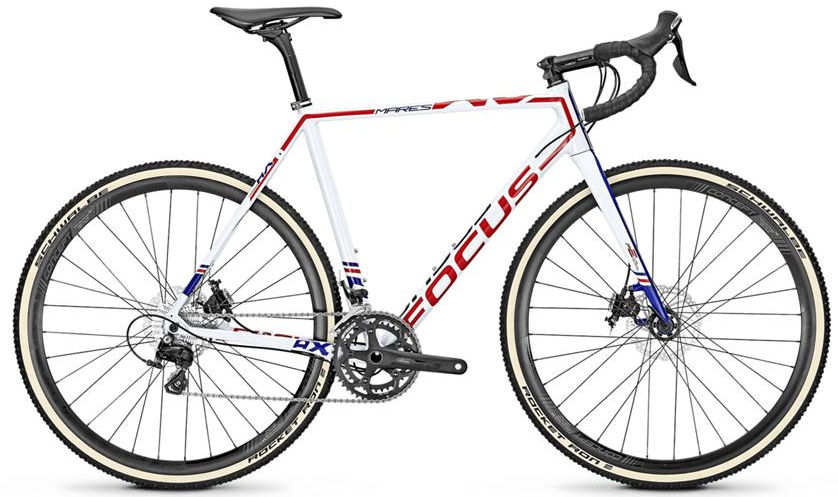

2015 Focus Mares AX Disc geometry
Full frame geometry for the 2015 Focus Mares AX Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 539 | 358 | 73.5 | 70 | 120 | 518 | 480 | 65 | 581 | 425 | 999 | 45 | 80 |
| XS | 549 | 367 | 73.5 | 70 | 130 | 529 | 510 | 65 | 593 | 425 | 1010 | 45 | 80 |
| S | 560 | 372 | 73.5 | 70.5 | 140 | 538 | 540 | 65 | 597 | 425 | 1015 | 45 | 76 |
| M | 571 | 381 | 73.5 | 71 | 150 | 550 | 560 | 65 | 605 | 425 | 1023 | 45 | 73 |
| L | 581 | 386 | 73.5 | 71 | 160 | 558 | 580 | 65 | 613 | 425 | 1031 | 45 | 73 |
| XL | 592 | 395 | 73.5 | 71.5 | 170 | 570 | 600 | 65 | 621 | 425 | 1038 | 45 | 70 |
All measurements in millimetres unless marked (°) for angles.
