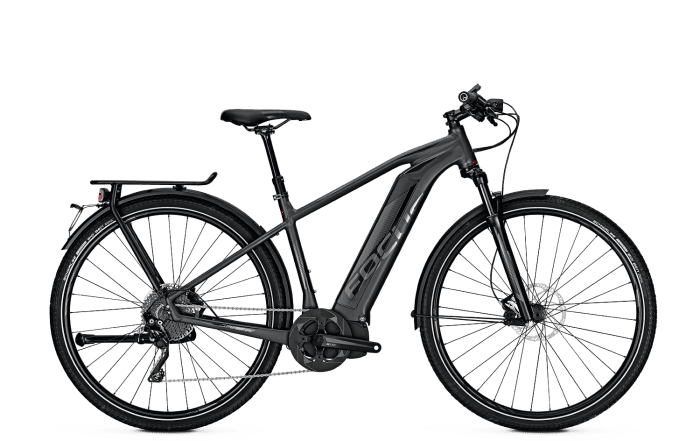

2018 Focus Jarifa2 I geometry
Full frame geometry for the 2018 Focus Jarifa2 I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 632 | 396 | 74 | 70 | 110 | 577 | 430 | 70 | 472 | 1114 | 44 |
| M | 641 | 406 | 74 | 70 | 120 | 590 | 460 | 70 | 472 | 1128 | 44 |
| L | 651 | 420 | 74 | 70 | 130 | 607 | 500 | 70 | 472 | 1145 | 44 |
| XL | 670 | 431 | 74 | 70 | 150 | 623 | 540 | 70 | 472 | 1163 | 44 |
All measurements in millimetres unless marked (°) for angles.
