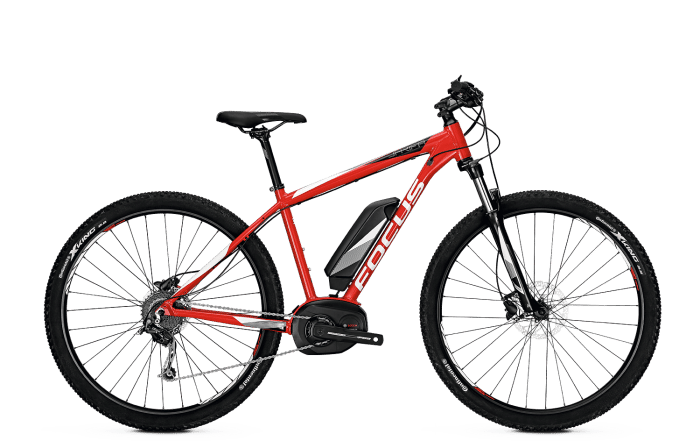

2018 Focus Jarifa2 EX geometry
Full frame geometry for the 2018 Focus Jarifa2 EX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 602 | 384 | 73.5 | 69 | 120 | 563 | 400 | 48 | 470 | 1111 | 44 |
| S | 620 | 399 | 73.5 | 69 | 140 | 583 | 440 | 48 | 470 | 1132 | 44 |
| M | 624 | 404 | 74 | 70 | 110 | 583 | 460 | 62 | 485 | 1137 | 44 |
| L | 643 | 419 | 74 | 70 | 130 | 604 | 500 | 62 | 485 | 1158 | 44 |
| XL | 662 | 429 | 74 | 70 | 150 | 619 | 540 | 62 | 485 | 1175 | 44 |
All measurements in millimetres unless marked (°) for angles.
