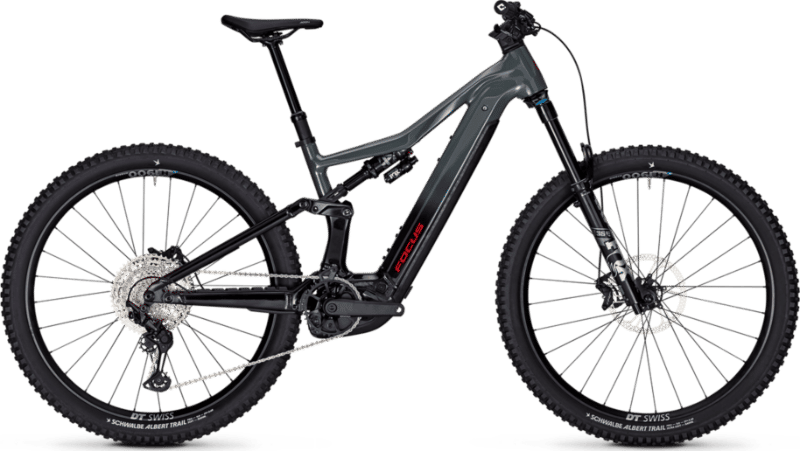

2026 Focus · EDB
2026 Focus JAM2 geometry
Full frame geometry for the 2026 Focus JAM2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 630 | 425 | 76.5 | 65 | 110 | 576 | 390 | 783 | 25 | 450 | 1205 | 44 |
| M | 639 | 455 | 76.5 | 65 | 120 | 608 | 420 | 783 | 25 | 450 | 1239 | 44 |
| L | 648 | 480 | 76.5 | 65 | 130 | 636 | 440 | 783 | 25 | 450 | 1268 | 44 |
| XL | 657 | 510 | 76.5 | 65 | 140 | 668 | 460 | 783 | 25 | 450 | 1303 | 44 |
All measurements in millimetres unless marked (°) for angles.
