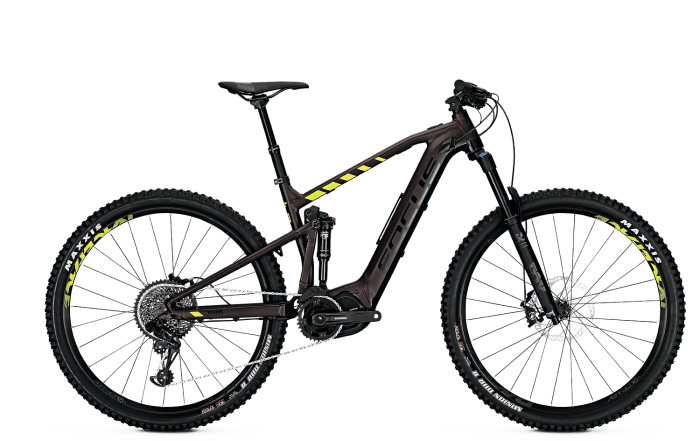

2018 Focus Jam2 Factory geometry
Full frame geometry for the 2018 Focus Jam2 Factory, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 620 | 425 | 74.1 | 66.1 | 120 | 602 | 440 | 16 | 470 | 1218 | 51 |
| S | 620 | 405 | 74.1 | 66.1 | 120 | 582 | 410 | 16 | 470 | 1198 | 51 |
| L | 638 | 440 | 74.1 | 66.1 | 140 | 622 | 470 | 16 | 470 | 1233 | 51 |
| XL | 656 | 455 | 74.1 | 66.1 | 160 | 647 | 500 | 16 | 470 | 1264 | 51 |
All measurements in millimetres unless marked (°) for angles.
