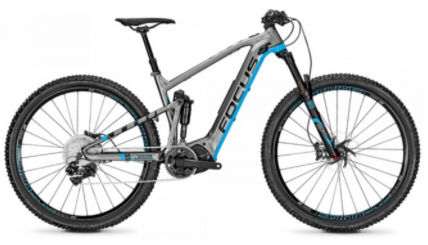

2017 Focus Jam2 29 geometry
Full frame geometry for the 2017 Focus Jam2 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 618 | 430 | 74.5 | 66.5 | 120 | 602 | 440 | 20 | 470 | 1215 | 51 |
| S | 618 | 410 | 74.5 | 66.5 | 120 | 582 | 410 | 20 | 470 | 1195 | 51 |
| L | 636 | 445 | 74.5 | 66.5 | 140 | 621 | 470 | 20 | 470 | 1238 | 51 |
| XL | 654 | 460 | 74.5 | 66.5 | 160 | 642 | 500 | 20 | 470 | 1261 | 51 |
All measurements in millimetres unless marked (°) for angles.
