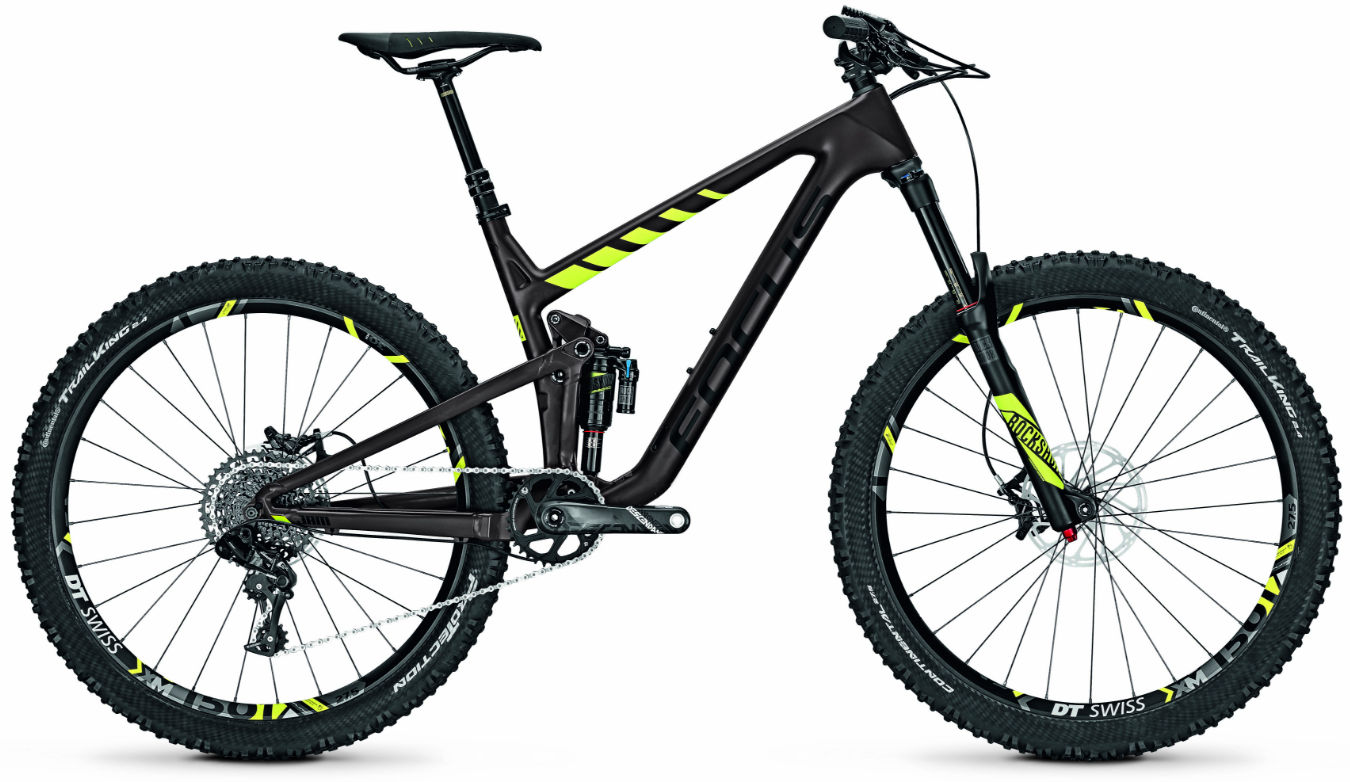

2016 Focus Jam C Factory geometry
Full frame geometry for the 2016 Focus Jam C Factory, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 590 | 410 | 74 | 66.3 | 110 | 571 | 410 | 12 | 425 | 1136 |
| M | 600 | 430 | 74 | 66.3 | 110 | 595 | 440 | 12 | 425 | 1156 |
| L | 623 | 450 | 74 | 66.3 | 135 | 620 | 470 | 12 | 425 | 1186 |
| XL | 641 | 470 | 74 | 66.3 | 155 | 645 | 500 | 12 | 425 | 1213 |
All measurements in millimetres unless marked (°) for angles.
