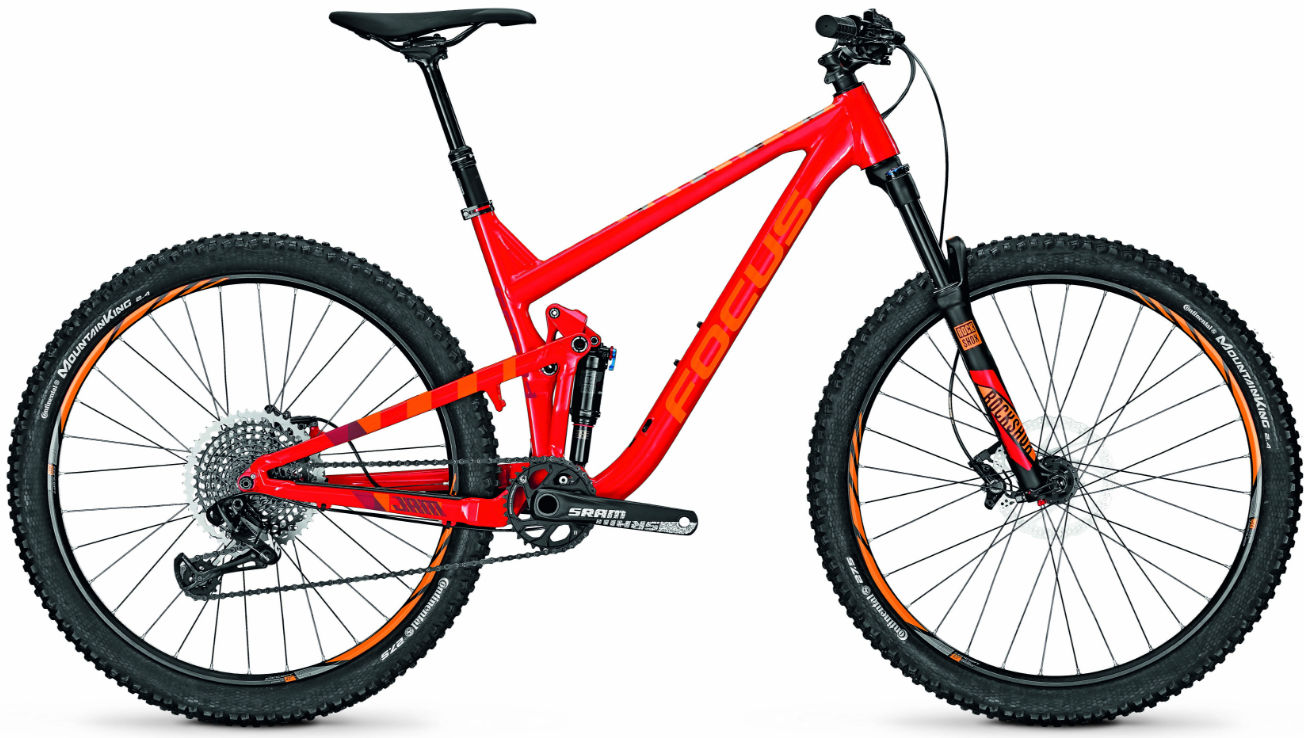

2016 Focus Jam Al geometry
Full frame geometry for the 2016 Focus Jam Al, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 582 | 415 | 74.5 | 66.8 | 110 | 576 | 410 | 16 | 425 | 1132 |
| M | 592 | 435 | 74.5 | 66.8 | 110 | 600 | 440 | 16 | 425 | 1152 |
| L | 615 | 455 | 74.5 | 66.8 | 135 | 625 | 470 | 16 | 425 | 1182 |
| XL | 633 | 475 | 74.5 | 66.8 | 155 | 650 | 500 | 16 | 425 | 1209 |
All measurements in millimetres unless marked (°) for angles.
