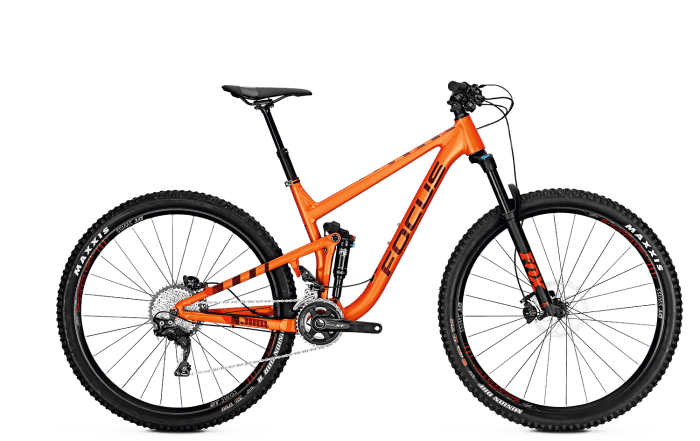

2018 Focus Jam 29 C geometry
Full frame geometry for the 2018 Focus Jam 29 C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 616 | 435 | 74.5 | 67.8 | 110 | 605 | 440 | 33 | 440 | 1170 | 51 |
| S | 616 | 415 | 74.5 | 67.8 | 110 | 585 | 420 | 33 | 440 | 1141 | 51 |
| L | 639 | 455 | 74.5 | 67.8 | 140 | 632 | 480 | 33 | 440 | 1199 | 51 |
| XL | 657 | 475 | 74.5 | 67.8 | 160 | 657 | 510 | 33 | 440 | 1227 | 51 |
All measurements in millimetres unless marked (°) for angles.
